CE双护套电缆控制电缆

作者： admin来源：本站时间：2019-09-03

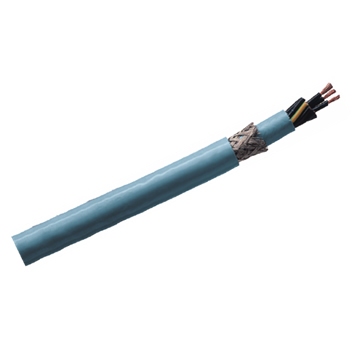

CE双护套屏蔽电缆，CE电线电缆 H05VV5-F H05VVC4V5-K
CE电线电缆适用于干燥或潮湿的室内，无强应力缓释或强制引导的偶尔运动下的安装，以及工业使用环境下的偶尔弯曲移动场合，如机床、木工、磨床等。
CE电线电缆 H05VV5-F H05VVC4V5-K
CE电线电缆H05VVC4V5-K结构
导体：多股精绞无氧铜丝，符合VDE0295 CLASS 5标准
绝缘：柔性PVC绝缘
颜色：≤0.5mm：棕、黑、蓝、紫、粉红、橙;
≥0.5mm：黑色芯线白色数字编号，3芯以上带有黄绿接地线（黄绿可选）
缆芯：多股芯线绞合成缆
屏蔽：裸铜丝或镀锡铜丝编织屏蔽（可选）
护套：耐油柔性PVC护套，灰色(RAL7001)，黑色(RAL9005)
额定电压：300/500V
使用温度：固定安装： -40℃ to +70℃
移动安装： -5℃ to +70℃
最小弯曲半径：固定安装：4*D
移动安装：15*D
CE电线电缆 H05VV5-F H05VVC4V5-K

型号	规格	导体根数	单根导体直径φ	近似密度公斤/KM	标称外径 /下限mm	外径上限mm
型号	规格	导体根数	单根导体直径φ	近似密度公斤/KM	标称外径 /下限mm	外径上限mm
H05VVC4V5-K	0.5*3C	28	0.15	125.7	8.4	9.0
H05VVC4V5-K	0.5*4C	28	0.15	144.6	9.1	9.7
H05VVC4V5-K	0.5*5C	28	0.15	166.5	9.8	10.4
H05VVC4V5-K	0.5*6C	28	0.15	185.7	10.5	11.1
H05VVC4V5-K	0.5*7C	28	0.15	212.8	11.3	11.9
H05VVC4V5-K	0.5*8C	28	0.15	242.8	12.5	13.1
H05VVC4V5-K	0.5*9C	28	0.15	254.9	12.5	13.1
H05VVC4V5-K	0.5*10C	28	0.15	290.5	13.4	14
H05VVC4V5-K	0.5*11C	28	0.15	311.3	13.8	14.4
H05VVC4V5-K	0.5*12C	28	0.15	318.0	13.8	14.4
H05VVC4V5-K	0.5*13C	28	0.15	346.0	14.5	15.1
H05VVC4V5-K	0.5*14C	28	0.15	352.5	14.5	15.1
H05VVC4V5-K	0.5*15C	28	0.15	383.4	15.4	16.2
H05VVC4V5-K	0.5*16C	28	0.15	390.1	15.2	16.2
H05VVC4V5-K	0.5*17C	28	0.15	422.7	16.0	17
H05VVC4V5-K	0.5*18C	28	0.15	429.4	16.0	17
H05VVC4V5-K	0.5*19C	28	0.15	439.5	16.0	17
H05VVC4V5-K	0.5*20C	28	0.15	494.9	18.1	19.1
H05VVC4V5-K	0.5*21C	28	0.15	507.2	18.1	19.1
H05VVC4V5-K	0.5*22C	28	0.15	532.4	18.1	19.1
H05VVC4V5-K	0.5*23C	28	0.15	558.1	18.9	19.9
H05VVC4V5-K	0.5*24C	28	0.15	563.9	18.9	19.9
H05VVC4V5-K	0.5*25C	28	0.15	587.5	19.4	20.4
H05VVC4V5-K	0.5*26C	28	0.15	597.6	19.4	20.4
H05VVC4V5-K	0.5*27C	28	0.15	604.4	19.4	20.4
H05VVC4V5-K	0.5*28C	28	0.15	643.3	20.1	21.5
H05VVC4V5-K	0.5*29C	28	0.15	650.2	20.1	21.5
H05VVC4V5-K	0.5*30C	28	0.15	660.3	20.1	21.5
H05VVC4V5-K	0.5*31C	28	0.15	696.5	20.9	22.3
H05VVC4V5-K	0.5*32C	28	0.15	706.6	20.9	22.3
H05VVC4V5-K	0.5*33C	28	0.15	713.6	20.9	22.3
H05VVC4V5-K	0.5*34C	28	0.15	751.8	21.8	23.2
H05VVC4V5-K	0.5*35C	28	0.15	762.0	21.8	23.2
H05VVC4V5-K	0.5*36C	28	0.15	768.9	21.8	23.2
H05VVC4V5-K	0.5*37C	28	0.15	779.0	21.8	23.2

H05VVC4V5-K	0.75*2C	24	0.2	127.1	8.5	9
H05VVC4V5-K	0.75*3C	24	0.2	144.2	8.9	9.4
H05VVC4V5-K	0.75*4C	24	0.2	168.2	9.7	10.2
H05VVC4V5-K	0.75*5C	24	0.2	192.1	10.4	11
H05VVC4V5-K	0.75*6C	24	0.2	220.9	11.3	11.9
H05VVC4V5-K	0.75*7C	24	0.2	252.2	12.3	12.9
H05VVC4V5-K	0.75*8C	24	0.2	288.7	13.5	14.1
H05VVC4V5-K	0.75*9C	24	0.2	304.4	13.5	14.1
H05VVC4V5-K	0.75*10C	24	0.2	347.0	14.5	15.1
H05VVC4V5-K	0.75*11C	24	0.2	372.8	14.8	15.6
H05VVC4V5-K	0.75*12C	24	0.2	381.8	14.8	15.6
H05VVC4V5-K	0.75*13C	24	0.2	416.2	15.6	16.6
H05VVC4V5-K	0.75*14C	24	0.2	425.1	15.6	16.6
H05VVC4V5-K	0.75*15C	24	0.2	462.8	16.5	17.5
H05VVC4V5-K	0.75*16C	24	0.2	471.8	16.5	17.5
H05VVC4V5-K	0.75*17C	24	0.2	511.7	17.4	18.4
H05VVC4V5-K	0.75*18C	24	0.2	520.7	17.4	18.4
